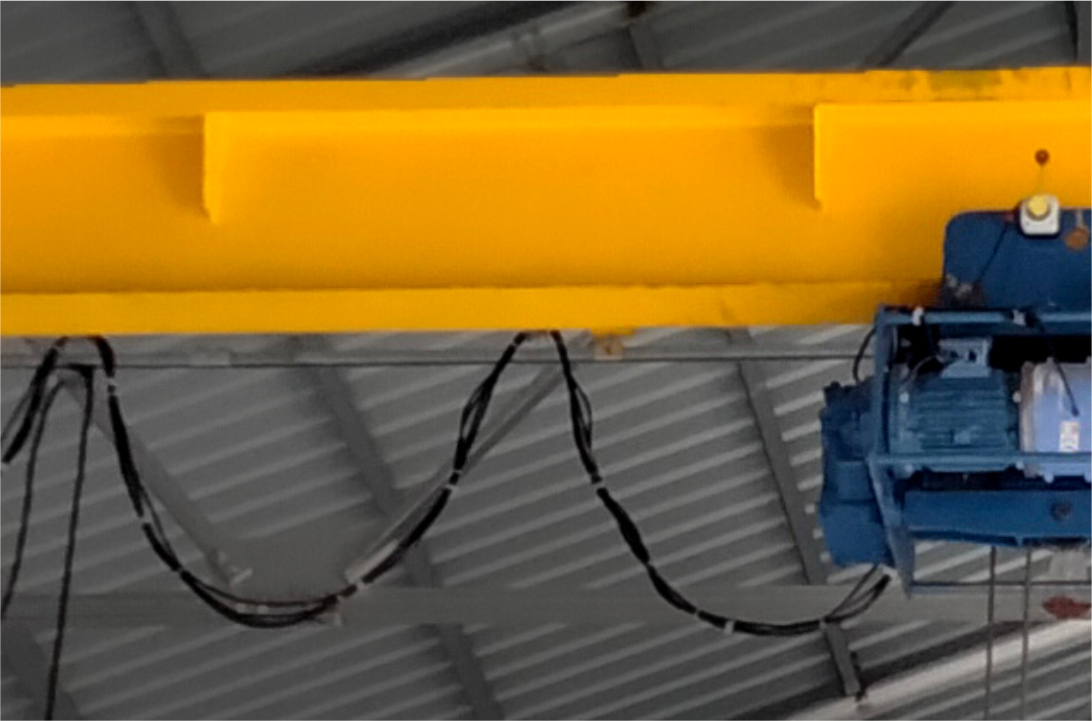

The crane which has one main bridge girder is known as a single girder crane, designed based on duty classification as per IS-3177 and IS-4137.
Designed and manufactured with factor of safety in accordance with IS-807.
It is most ideally suited for light industrial applications.
Being cost effective, the single girder crane is most successful in small and medium scale industries.

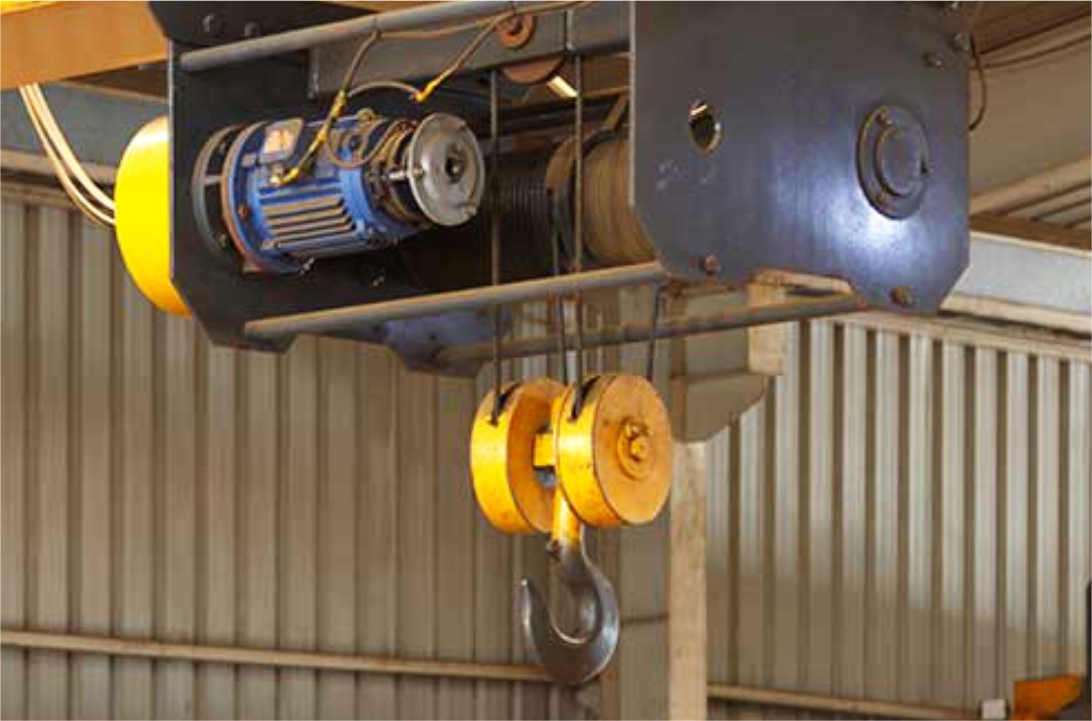

Main features include the main girder, end carriage, and hoisting machine — wire rope hoist or chain hoist as per application, operated electrically or manually.
Specifications and Special Features
- Cranes have high quality structural assembly which ensures compliance with applicable standards
- Easily adjustable limit switches
- Load tested 125% and certified from tests undertaken in our own workshops
- Working load: 500 kgs to 30,000 kgs
- Span length: 3 to 30 meters
- Height of lift: As per customer requirements
- Class of duty / Standards: Equivalent to M3, M5, M7, M8
- Speeds: Selected depending on client specifications, application, and shed dimensions
- Crane control: From floor through pendant push buttons, optionally through radio remote control
- Drive system: Twin drive through squirrel cage induction geared motors with built-in fail-safe brakes
- Brakes: Built-in brakes for hoisting, cross travel, and long travel motions
