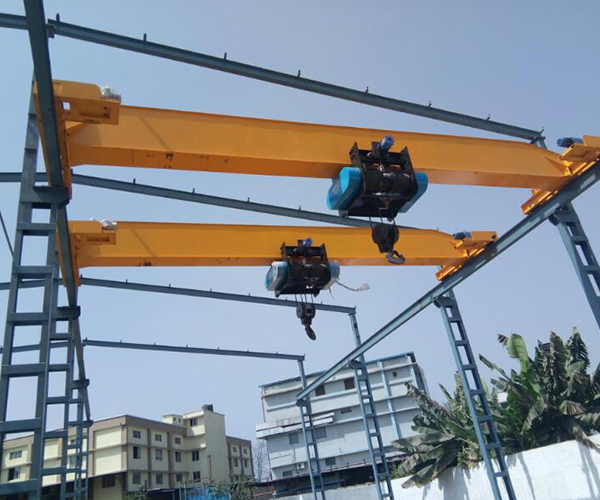

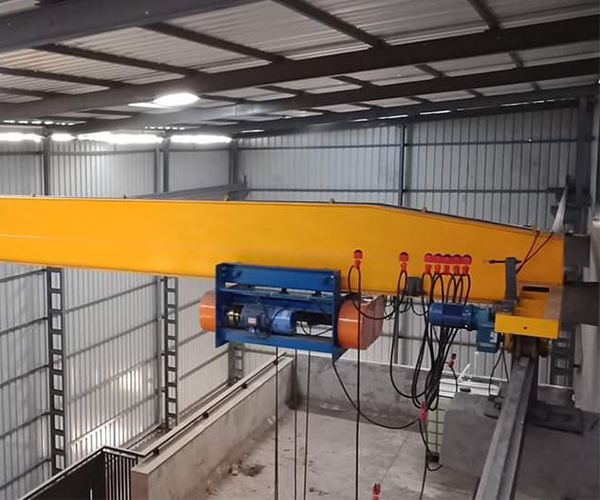

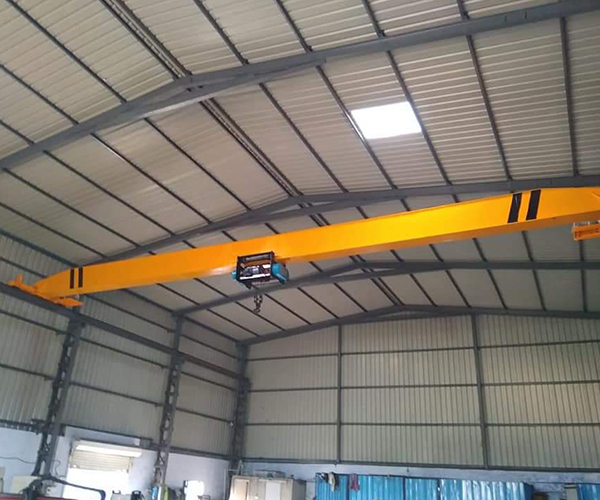

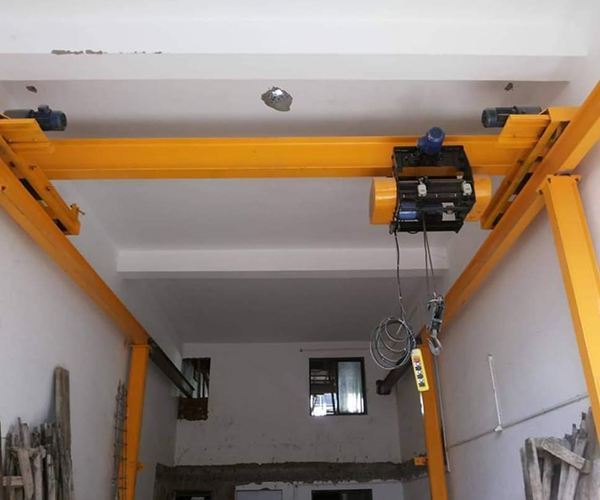

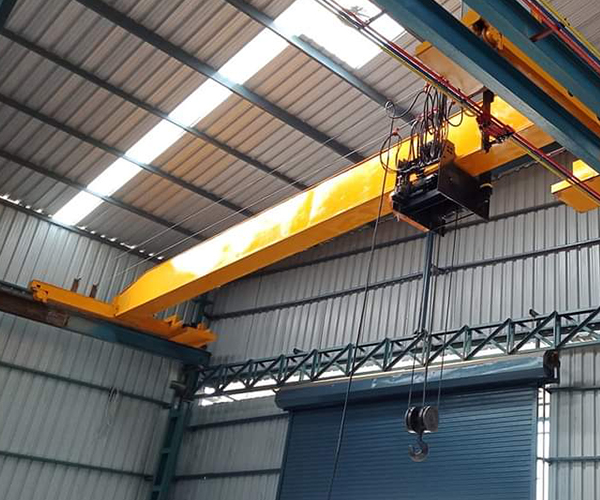

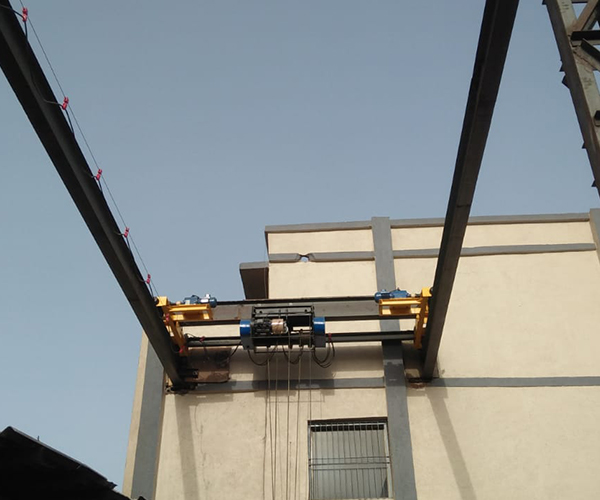

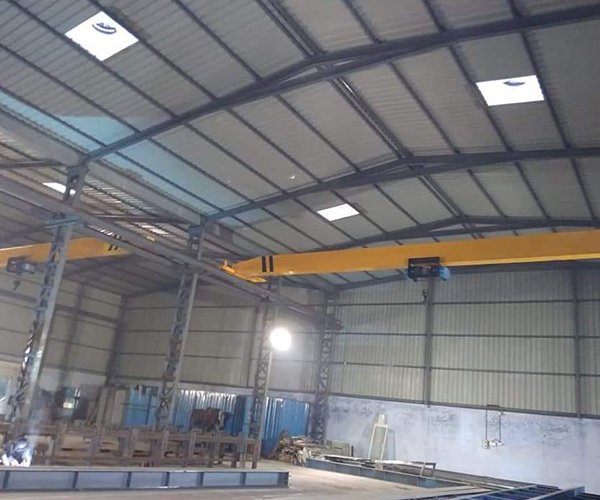

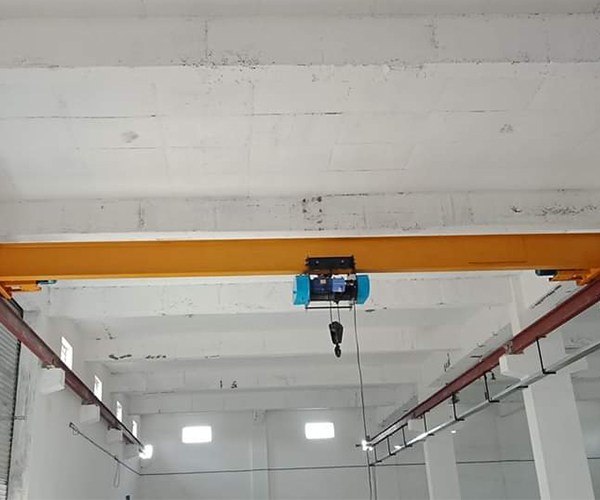

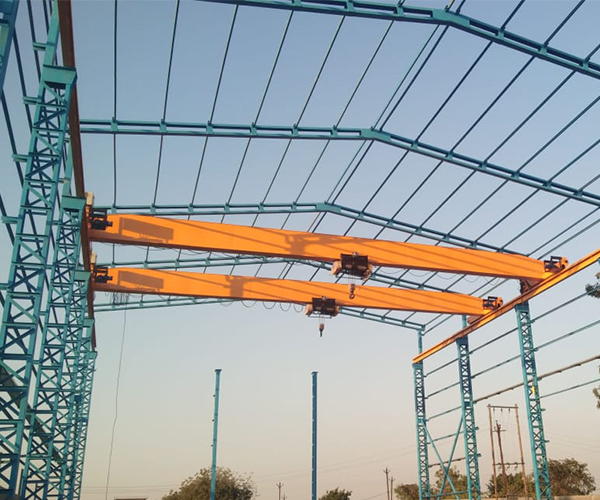

SINGLE GIRDER EOT CRANE
The crane which are having one main bridge girder,
known as single girder crane, based on duty
classification as per IS - 3177 & IS -4137.
Designed & manufacture based on factor safety with the IS - 807.
It is most ideally suited for light industrial applications.
Being cost eGective, single girder crane is most successful
in small & medium scale industries.

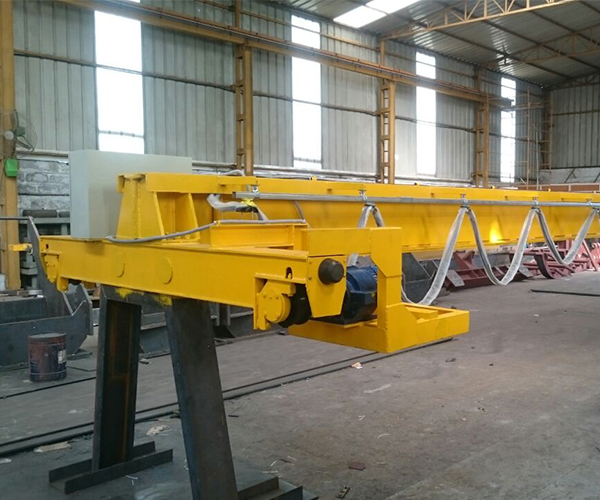

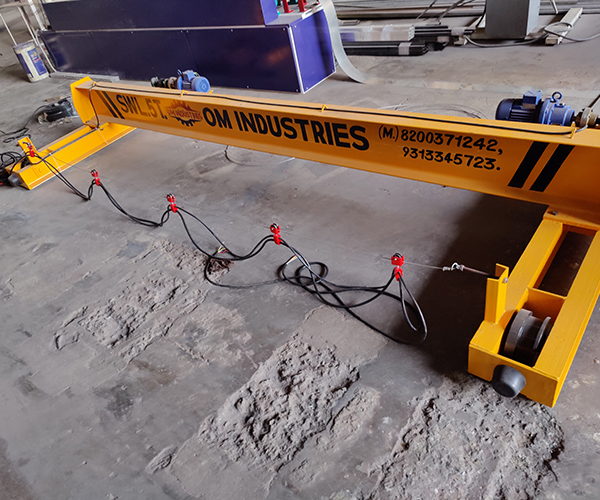

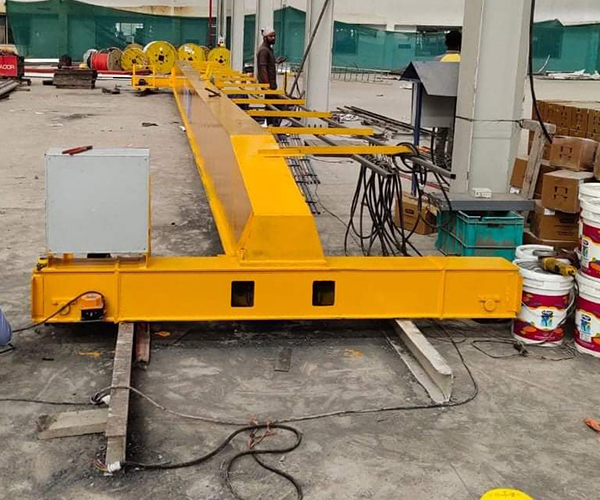

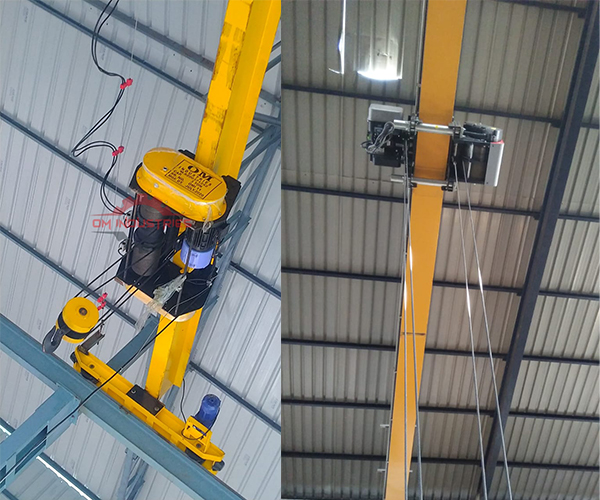

Main features is main girder , end carriage & hoisting machine
which is wire rope hoist or chain hoist as per application,
electrically or manually.
SPECIFICATIONS AND SPECIAL FEATURES
- Cranes have high quality structural assembly which ensures acquiescence
- Easily adjustable limit switches
- Load tested 125% and certified from tests undertaken in our own workshops
- Working load: 500 kgs to 30,000 kgs
- Span length: 3 to 30 meters
- Height of lifi: As per customer requirements
- Class of duty / Standards: Equivalent to M3,M5,M7,M8
- Speeds: Selected depending on client's specifications / application/ shed dimensions
- Crane control: From floor threw pendent push buttons, optionally through radio remote control
- Drive system : Twin drive through squirrel cage induction gearedmotors with built-in dialsafe brakes
- Brakes : Built - in brakes for hoisting, cross travel and long travel motions
