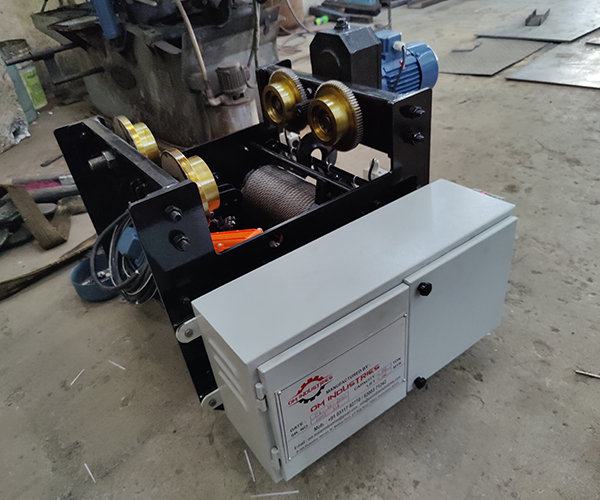

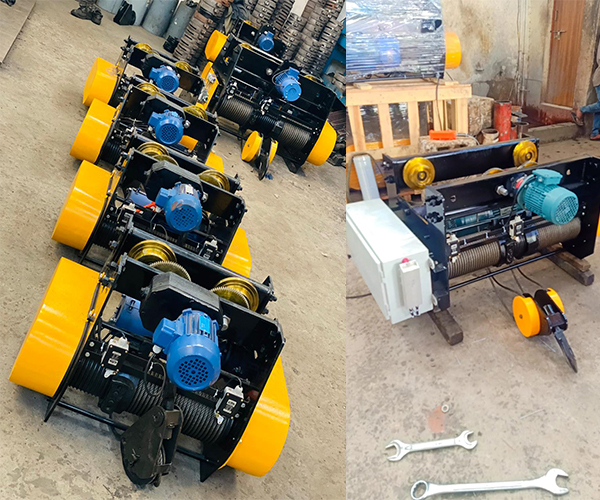

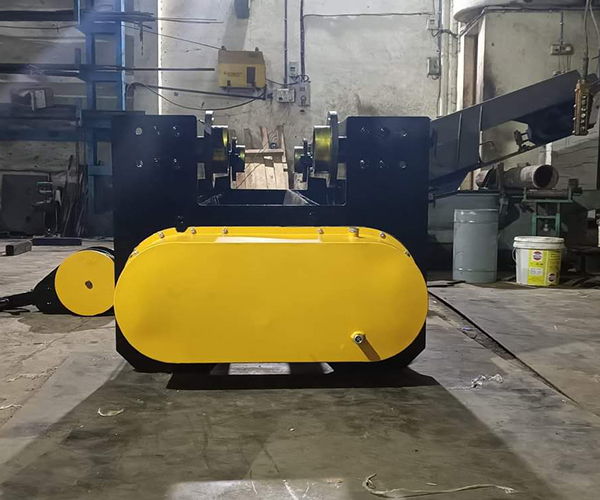

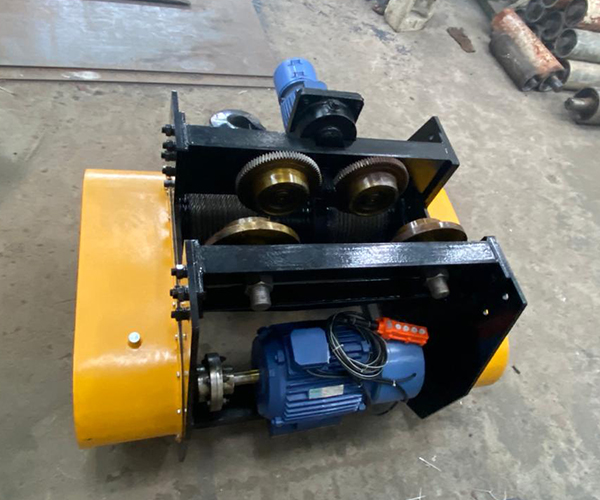

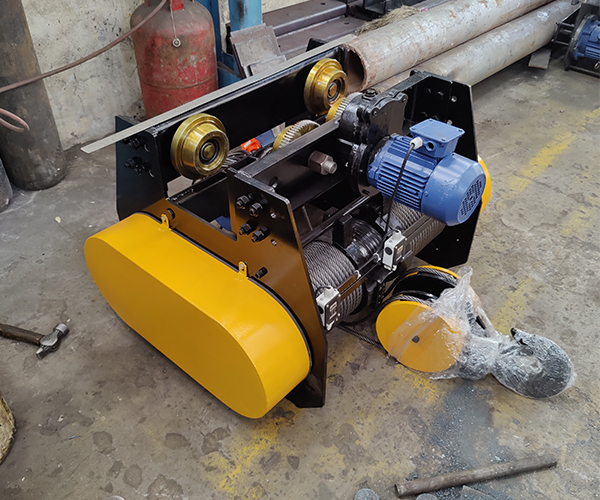

ELECTRIC WIRE ROPE HOIST
Wire rope hoist mechanism comprises of our standard for single girder EOT CRANES. The hoist in mechanism is finely engineered
for smooth, Jerk free Lifiing of loads. Electric wire rope hoist are designed in modular constructions superior quality which simplifies
repairs & reduce down time during preventive maintenance. Hoist drives are generally crane duty squirrel cage or slip ring motors, selected according at the class of duty driving the rope drum
threw the helical gearboxes. The rope drum are made out of seamless pipes fabricated from steel plates tested as per ASTM / IS standards.
| Capacity | 0.5T | 1T | 1T | 2T | 2T | 3T | 5T | 7.5T | 10T | |
| No. | Of Fall | 2 | 2 | 4 | 2 | 4 | 4 | 4 | 4 | 4 |
| STD. | Lift | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Wire | Rope Dia | 6 | 8 | 6 | 10 | 8 | 10 | 12 | 14 | 16 |
| Hoist | Speed MRM | 5 | 4 | 4 | 4 | 4 | 4 | 3.5 | 3.5 | 2.5 |
| HP | 1 | 1.5 | 1.5 | 3 | 3 | 5 | 7.5 | 5 | 12.5 | |
| CT | Speed MPM | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| HP | 0.25 | 0.25 | 0.25 | 0.5 | 0.5 | 0.5 | 1 | 1 | 1.5 | |
| Length | (L) | 710 | 785 | 820 | 915 | 940 | 940 | 1170 | 1170 | 1370 |
| Width | (W) | 685 | 760 | 760 | 810 | 890 | 890 | 965 | 965 | 1320 |
| Height | (H) | 485 | 530 | 530 | 660 | 660 | 660 | 765 | 765 | 1015 |
| Weight | (KGS) | 100 | 150 | 175 | 250 | 275 | 300 | 400 | 425 | 825 |
